Sludge pump
50001292

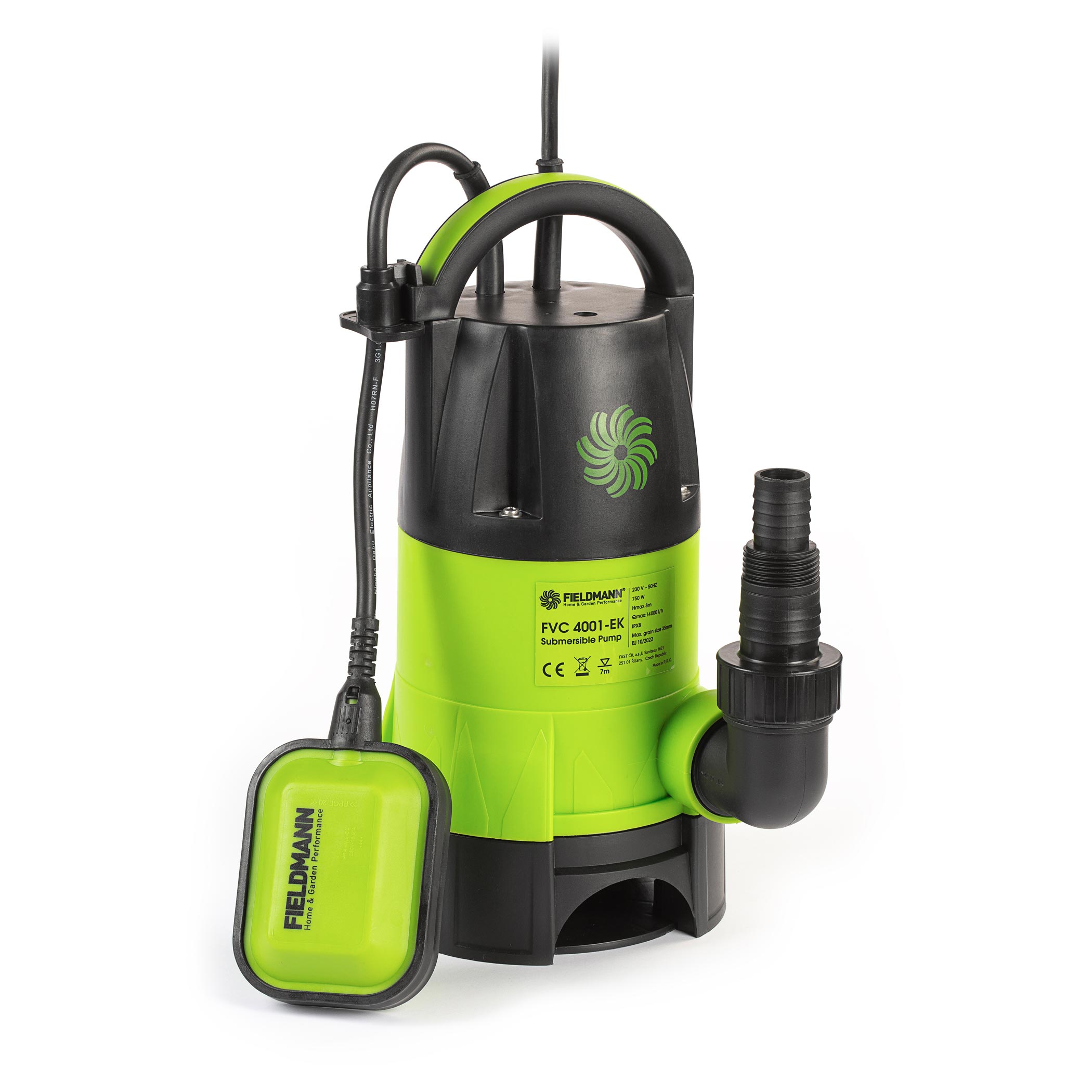

Sludge pump
FVC 4001-EK

  • 750 W electric motor
  • Maximum delivery height of 8 m
  • Maximum  submersion of 7 m
  • Float switch
Where to buy
Sludge pump
50001292-01
50001292-02
50001292-03
50001292-04
Sludge pump 50001292-01 50001292-02 50001292-03 50001292-04

Description

The universal sludge pump with a 750 W electric motor can pump up to 14 000 L per hour. The maximum submersion depth is 7 m. The maximum size of solid particles in the liquid is 35 mm. Automatic activation when a certain liquid level is reached and likewise deactivation when the level falls below the permitted limit is performed by a float switch. The switch can also be partially set to change these limit points.
It is possible to connect a 1" or 2" hose, or possibly a 1" threaded connection to the pump.

A 1" (25mm) or 1-1/4" (32mm) hose or a 1" threaded connection can be connected to the pump.

Download

Manual /multilingual/ Manual /LT/ Manual /CZ/ Manual /ES/ Manual /SK/ Manual /HU/ Manual /RU/ Manual /EN/ Manual /DE/ Manual /IT/ Manual /FR/ Manual /PL/ Manual /RO/ Warranty Certificate

Technical Parameters

  • Power input 750 W
  • Max. flow rate 14,000 l/hour
  • Max. depth of immersion 7 m
  • Max. delivery 8 m
  • Max. size of solid admixtures 35 mm
  • Power cable length 10 m
  • Floating switch
  • It is possible to connect a 1" or 2" hose, or possibly a 1" threaded connection to the pump.
  • Width 23 cm
  • Height 34 cm
  • A 1" (25mm) or 1-1/4" (32mm) hose or a 1" threaded connection can be connected to the pump.
