Fieldmann
Garden
Pumps
Sludge pump
50000121

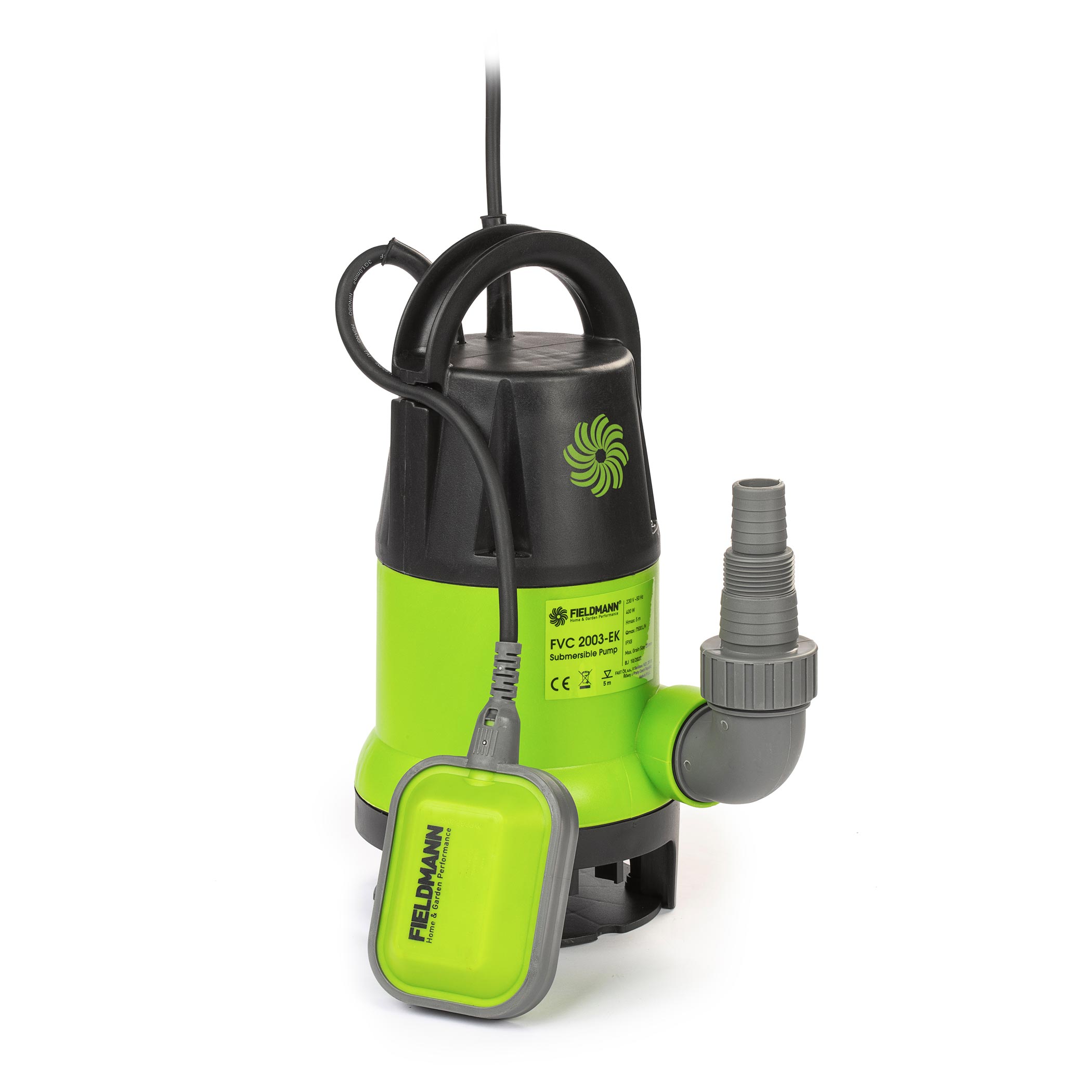

Sludge pump
FVC 2003-EK

  • 400 W electric motor
  • Maximum delivery height of 6 m
  • Maximum  submersion of 5 m
  • Float switch
Where to buy
Sludge pump
50000121-02
50000121-03
50000121-04
50000121-05
Sludge pump 50000121-02 50000121-03 50000121-04 50000121-05

Description

The universal sludge pump with a 400 W electric motor can pump up to 7,500 L per hour. The maximum submersion depth is 5 m, maximum delivery height of this pump is 6 m. The maximum size of solid particles in the liquid is 25 mm. Automatic activation when a certain liquid level is reached and likewise deactivation when the level falls below the permitted limit is performed by a float switch. The switch can also be partially set to change these limit points. The power cord has a length of 10 m.

A 1" (25mm) or 1-1/4" (32mm) hose or a 1" threaded connection can be connected to the pump.

Download

Manual /CZ/ Manual /SK/ Manual /RO/ Manual /EN/ Manual /LT/ Manual /PL/ Manual /multilingual/ Manual /RU/ Manual /HU/ Declaration of Conformity /HR/ Warranty Certificate

Technical Parameters

  • Power: 400 Watts
  • Max. Water flow rate: 7500 l / h
  • Max. displacement of 6 m
  • Max. immersion depth: 5 m
  • Max. size of solids (dirt) medium: 25 mm
  • Max. medium temperature: 35 ° C
  • Automatic float switch
  • Cord Length: 10 m
  • Width 23 cm
  • Height 33 cm
  • A 1" (25mm) or 1-1/4" (32mm) hose or a 1" threaded connection can be connected to the pump.
