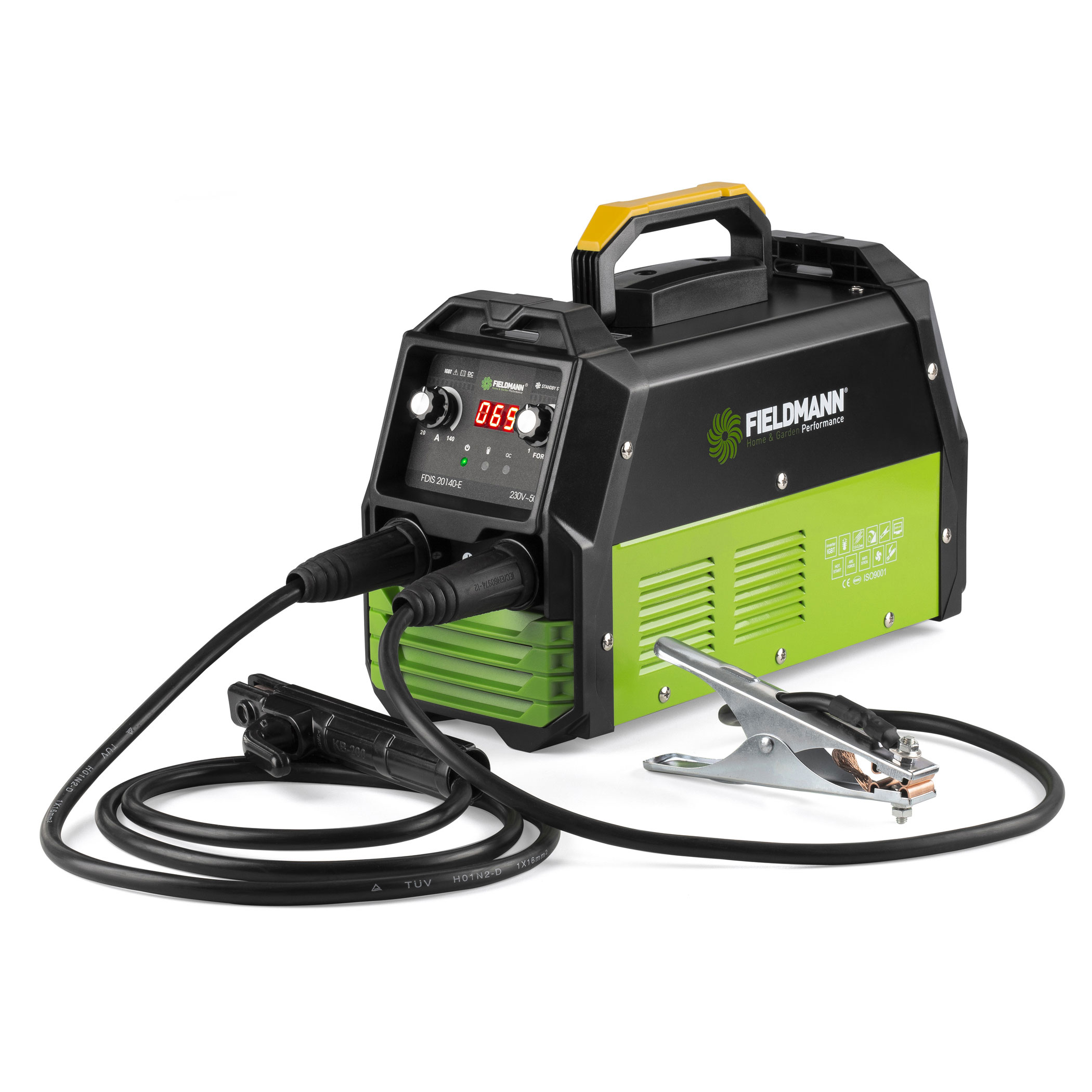

Welding machine
FDIS 20140-E

Compact welder with inverter technology and low weight
Overload protection thanks to control device with control light
Infinitely adjustable welding current 20-140 A
The package includes a practical welding shield, welding cable for electrodes and grounding cable
Suitable for welding diodes max. 3.2 mm
Integrated fan

Where to buy

Description

The invert welder from the renowned manufacturer FIELDMANN ensures all work for easy cutting and homogeneous joining of steel, stainless steel, galvanized metal and alloy. This machine is supplied including a practical welding shield, welding cable and also a grounding cable. The machine is compatible with all commonly available steel, cast iron and basic rod electrodes. A part of the machine is a continuous regulation of the welding current, where the maximum welding current is 140 A with a maximum electrode diameter of 3.2 mm.

Package contents:
Invert welder
Welding shield
1 ground cable
1 piece of welding cable
brush

Download

Manual /SK/ Manual /multilingual/ Manual /EN/ Manual /CZ/ Manual /PL/ Manual /HU/

Technical Parameters

Voltage: 230 V AC / 50 Hz
Actual output current: 20-140 A
Electrode diameter: 1.6 - 3.2 mm
Input current: 28 A
Maximum input power: 6.1 KVA
No-load voltage VRD: 25-50
Protection class IP21
Efficiency: ≥ 80%
Insulation class: F
Welding shield included
